Photocell to bypass ACM-2 during daylight
The ACM-2 AC Current Monitor can be used with the RFC-1/B to detect and measure AC current draw in external devices such as tower lighting systems. When properly programmed, the RFC-1/B can contact appropriate personnel when an over or under current condition exists.
!Automatic monitoring does not relieve you of any FAA or FCC obligations regarding tower light monitoring.
Tower obstruction lighting must be checked daily for proper operation. Because of the potentially serious consequences of obstruction lighting failure on a tower, many stations want to have an automatic means to continuously monitor the obstruction lighting and to be notified immediately of a failure.
Alarm Block
Since tower lighting is not normally used during daylight hours, it may be useful to ignore the status of tower lights during daylight. One way to do this with the RFC-1/B is to "block" the tower light alarm during daylight hours.
The problem with blocking alarms is that normal daylight hours fluctuate with the seasons. This makes it difficult to program the alarm block so that daylight hours are always blocked and nighttime hours are not blocked.
Photocell
A more accurate method of inhibiting tower lighting alarms during daylight is to bypass the ACM-2 telemetry sample during daylight using a photosensor. The circuit below does this and costs only a few dollars to build.
The idea behind this circuit is to insert a DC voltage at the RP-8 telemetry input terminals during daylight that prevents the telemetry alarm from occurring. Simply put, the RFC-1/B thinks the lights are on. At night, the "fake" sample voltage is removed and the signal from the ACM-2 is monitored.

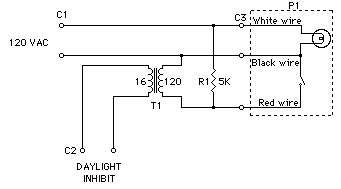

Photocell Bypass Schematic
| Qty | Description | Location |
|---|---|---|
| 1 | Photo sensor (Intermatic #K4221C or equivalent) | P1 |
| 1 | 120 VAC to 16 VDC power transformer | T1 |
| 1 | 5K Ohms resistor, 10W, wire-wound enamel | R1 |
The ACM-2 has an input to attach this circuit. Once the photosensor is installed, the telemetry for the tower lights will read normally at night, usually 100.0%, and will typically read a much higher value during the day–usually full-scale. The full-scale reading depends on how the telemetry channel is programmed.
Take that into consideration when programming an alarm for this input. Set the upper limit to 9999 and the lower limit to the appropriate alarm point. This way the upper limit is ineffective and the lower limit sets the active trip point.
